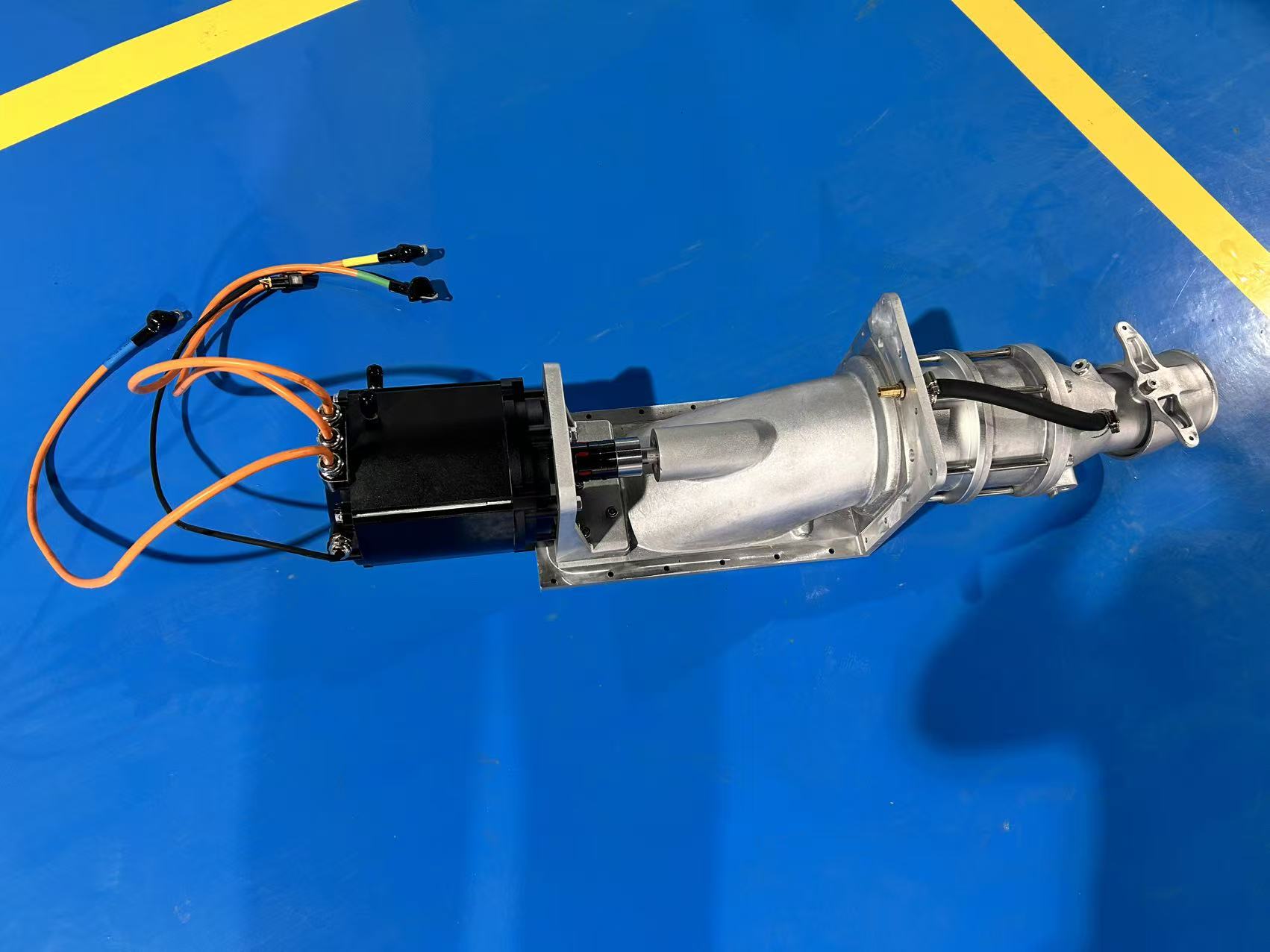

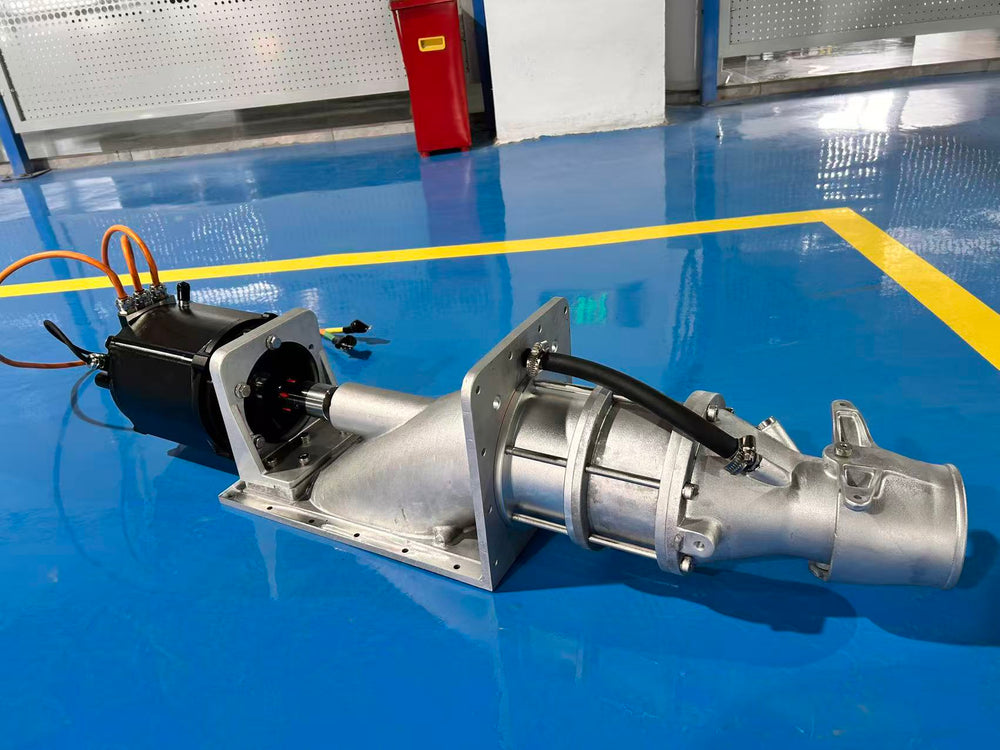

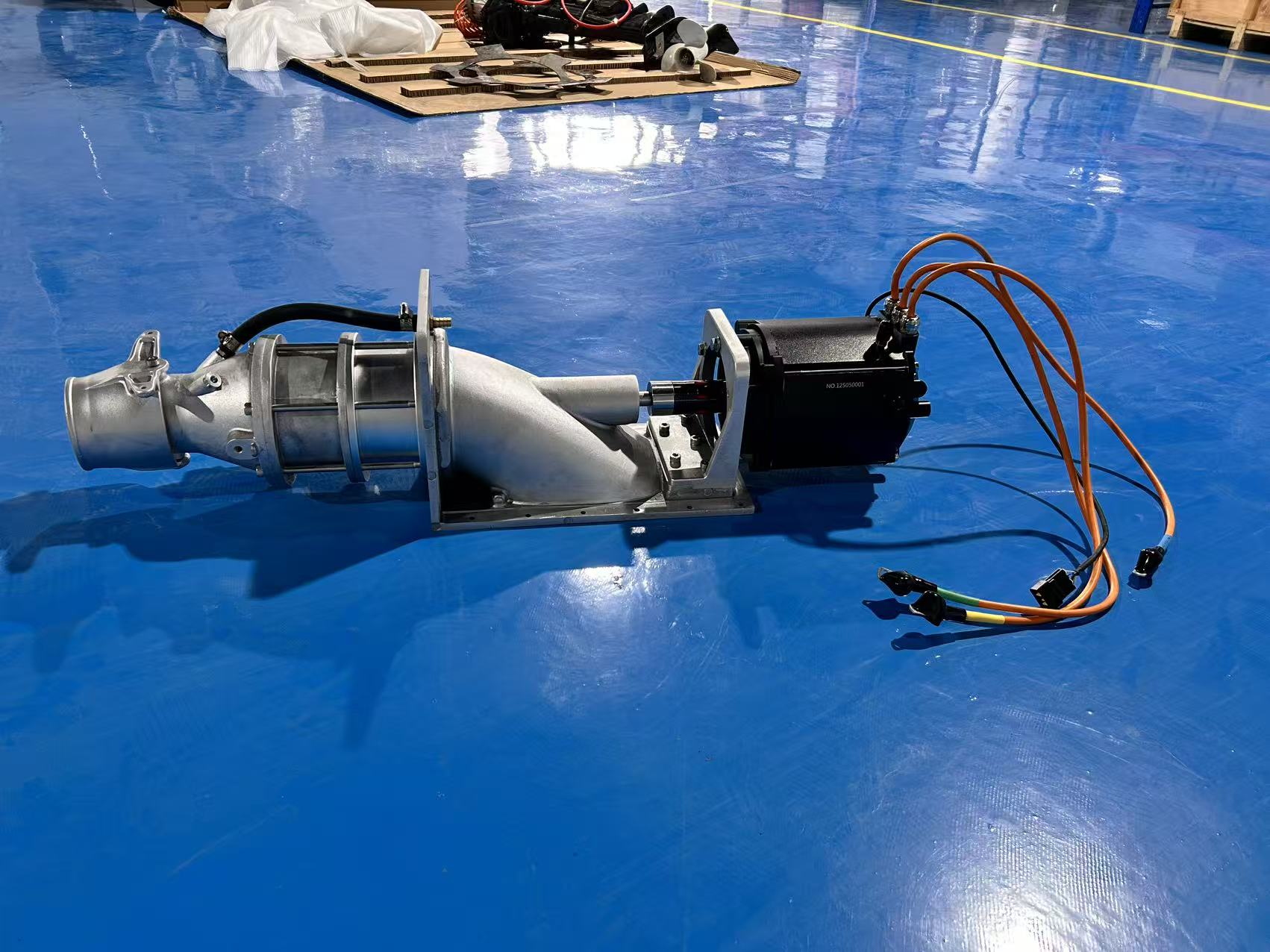

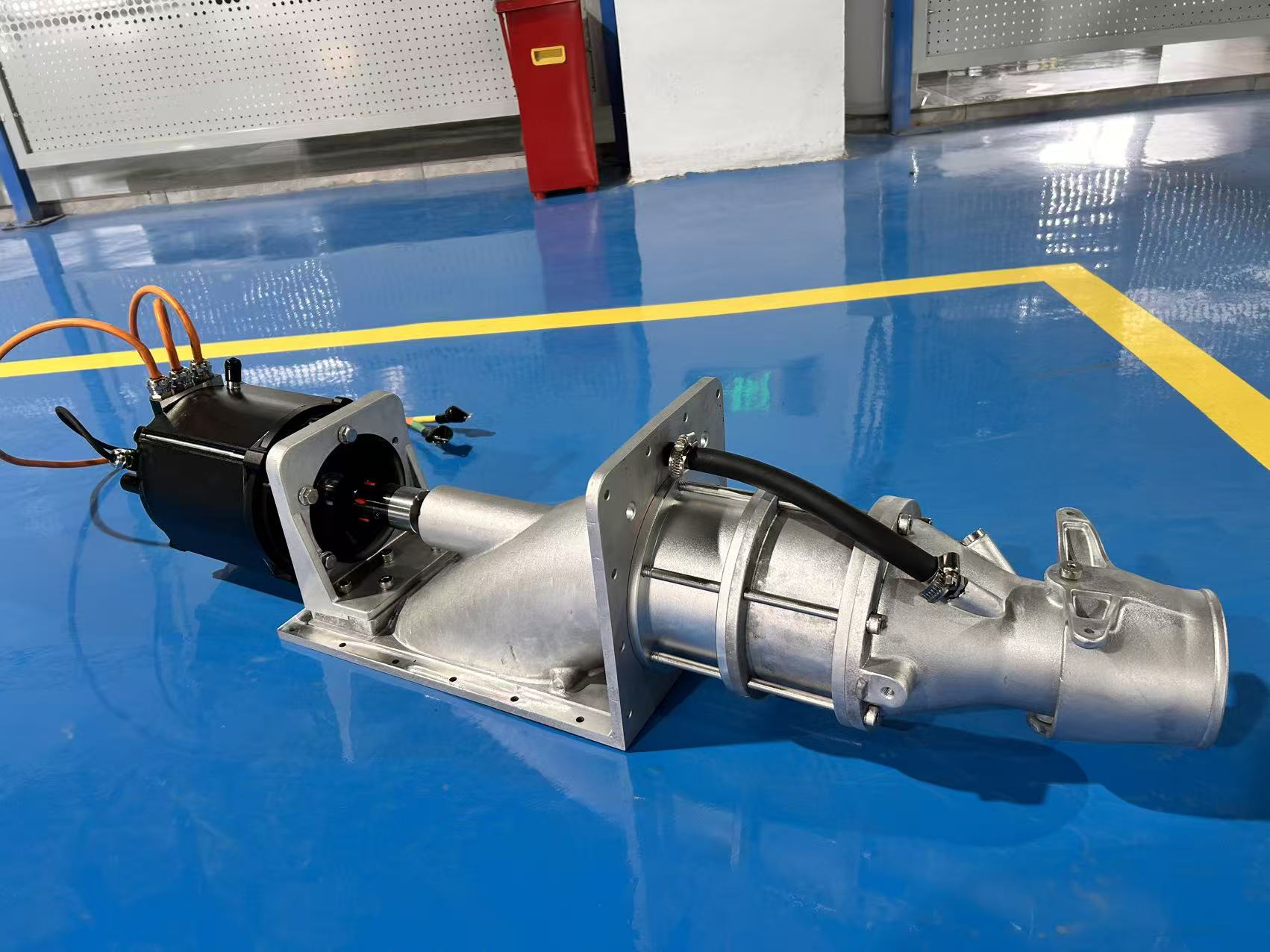

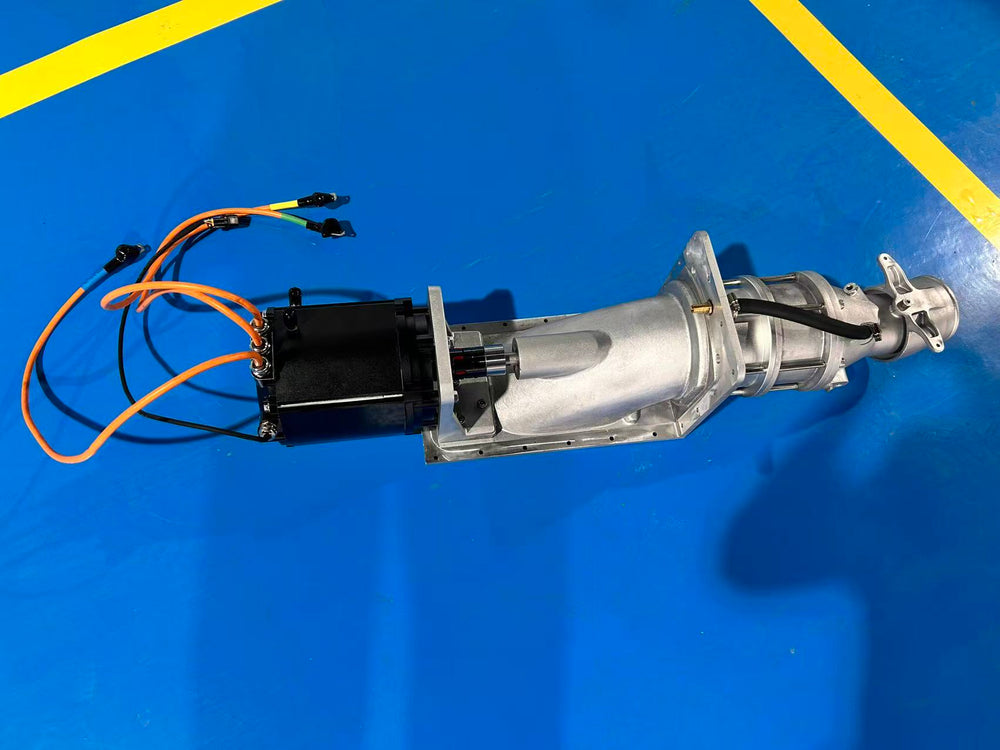

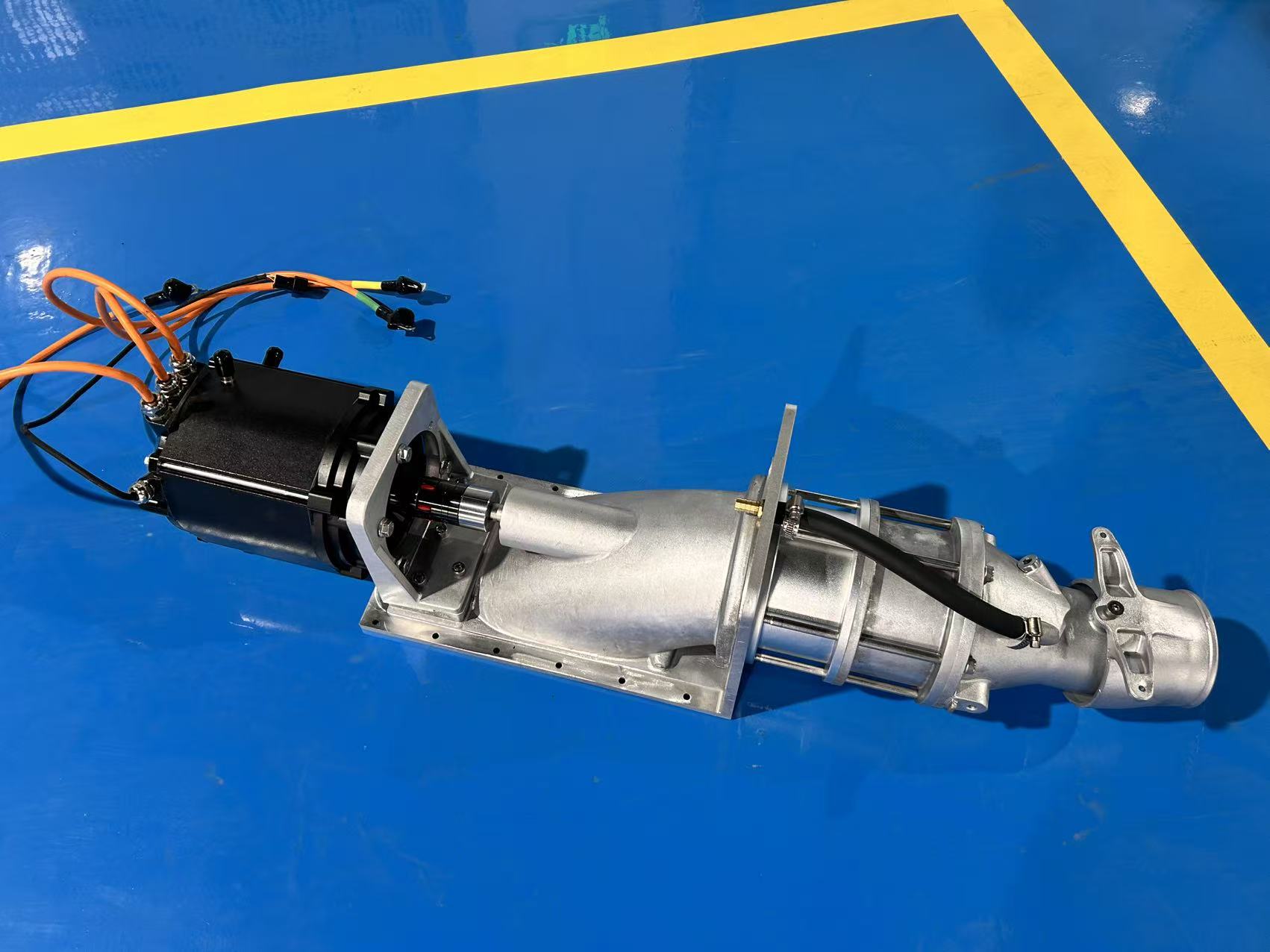

Havospark HS-KAB 144V 35kW Electric Drive System for Mini Jet Boats – Liquid Cooled, 160mm Jet Pump

Model HS-KAB – 10 kW

Peak Power : 20 kW

Rated Power : 10 kW

Peak Torque : 53 N·m

Rated Torque : 16.7 N·m

Dimensions (L×W×H) : 856.48 × 200 × 221 mm

Rated Voltage (V DC) : 72–96 V

Phases : 3

Peak Phase Current (A) : 350 A

Rated Phase Current (A) : 120 A

Peak Speed in Water (rpm) : 5500

Rated Speed (rpm ) : 5730

Max. Efficiency (%) : 94.5 %

Ingress Protection : IP67

Cooling Method : Liquid cooled

Matching Propeller : 120

Total Drive System Weight : ~22 kg

For customers who want more power margin and thermal stability, we also offer a complete 144V drive system developed for mini jet boats. The system is rated at 35kW, with peak power up to 75kW, and includes the motor, liquid-cooled controller, 160mm jet pump, dashboard, and full wiring harness.

From an engineering perspective, the 144V platform allows strong torque output (up to 150 N·m peak) while keeping phase current under control, which helps with efficiency and pump matching. The system is IP67 rated and designed for continuous marine operation.

For saltwater applications, we recommend adding an internal circulation water pump to isolate the cooling loop and improve long-term reliability. For freshwater lakes or inland waters, this additional pump is not required, as the standard cooling setup is sufficient.
